Connection to the Candy MDL PCB (K6 connector) and Candy INVENSYS (J10 connector):



When working with Candy Invensys PCB, no jumpers are required.

The firmware in these modules is stored in the internal EEPROM of the microcontroller memory.

It contains configuration data for the model on which this board is installed, as well as various kinds of variable values, for example, statistics of errors that occurred during operation.

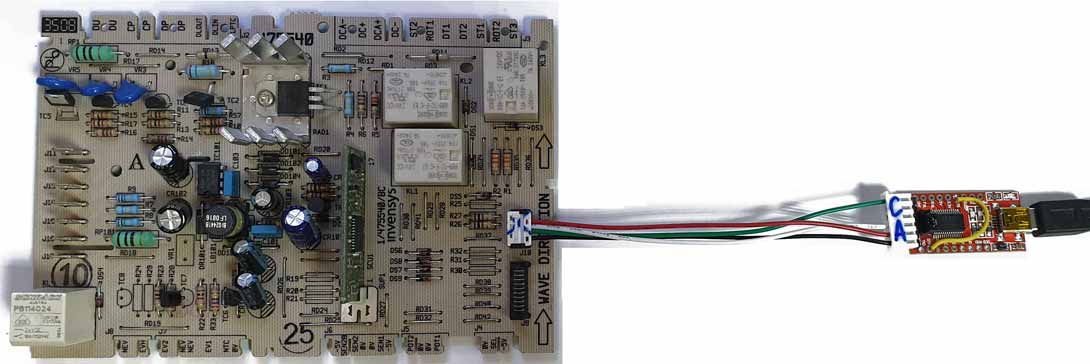

Below is a drawing with the connection of the programmer on the FT232RL chip and the connector, made according to the SPP scheme.
